BioNIC FX9
Face Recognition Time Attendance Machine

Enterprise Wide Facial Recognition System

Retail Price 0
Selling Price 0
You Save 0 ( 0%)

Extended Warranty
Installation Service * Yes

Quantity

Device Price 0
Extender Warrenty 0
Installation Service 0

Total 0

Description

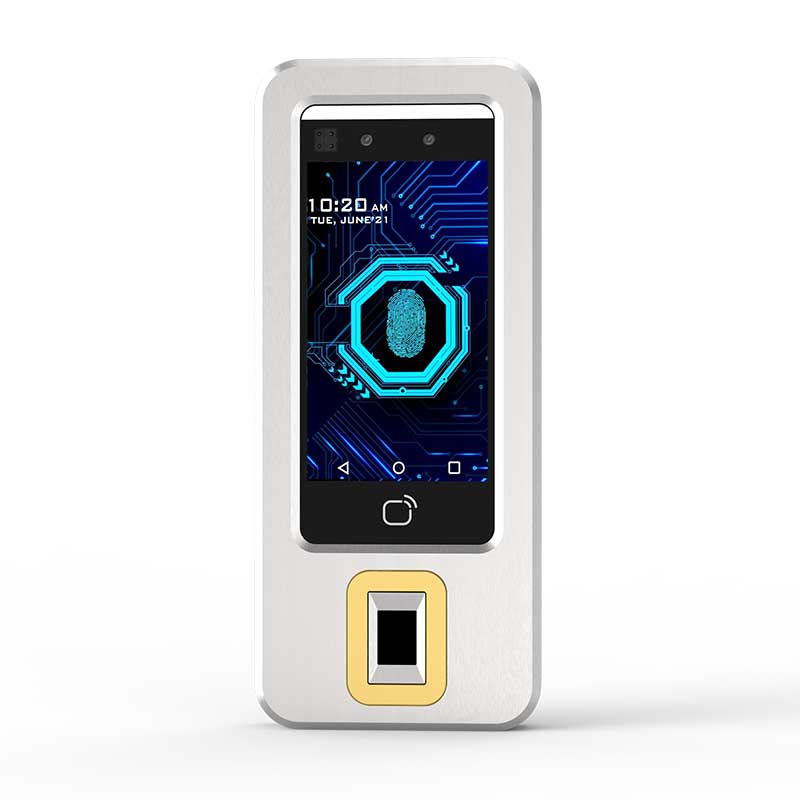

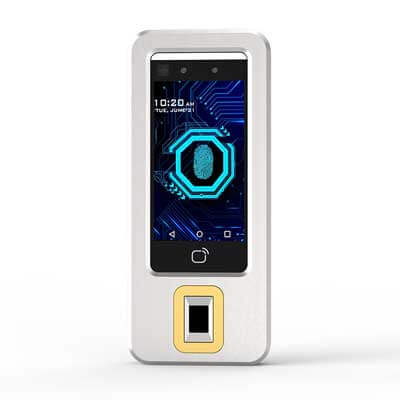

Elegant fabrication with multimodal capabilities provides the choice of facial and finger punching options to users. The device comes with a design that ensures complete liveliness for the face & finger using the most accurate capacitive sensors. BioNIC Fx9 meets high-quality interior standards for corporate installation. High-end technology provides data security and seamless access control with precision-based matching.

Applications

Machine variants offer multimodal biometrics, including facial & fingerprint modalities added by smart card interface to perform various types of authentication and matching requirements.

Advance AI-based facial engine along with options for optical and capacitive fingerprint interface to provide choice in technology and serving of use cases.

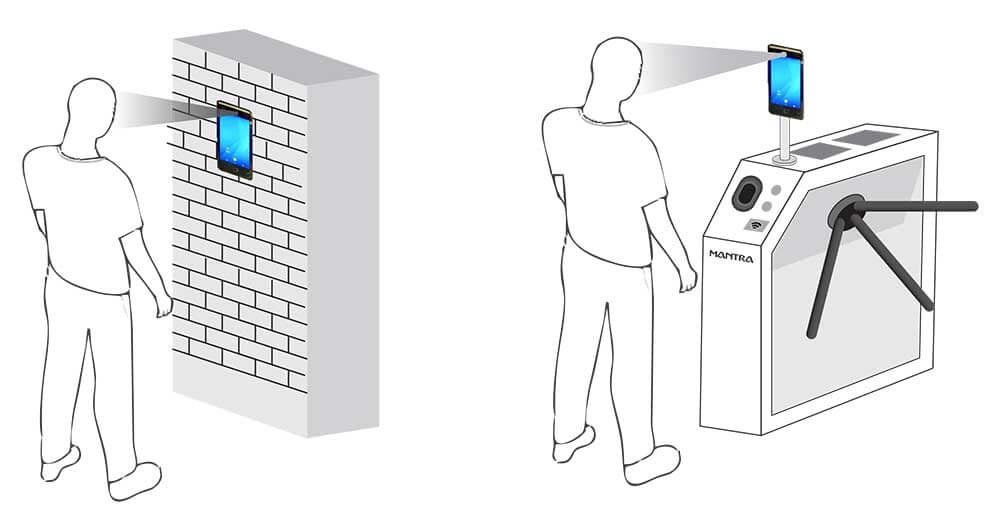

Built-in access control features can provide seamless integration with door locks, turnstiles, and flap barriers for authorized entry & exit to users.

The advanced access control features can provide alarms, alerts and notifications, including the status of doors and central monitoring to achieve security needs.

Cross-platform API interface provides effortless integration with third-party software and hardware controller over Wiegand or RS-485 or Ethernet LAN network.

Design and engineering of machines are for attendance, access control, visitors, canteen, and access control requirements with real-time data integration and monitoring facilities.

Features

Best in class, American Amlogic processor to ensures data security and compliance requirements.

Multi-core processor with GPU provides AI feature for rapid and accurate matching.

Wiegand, LAN support to ensure all types of communication requirements.

Facial liveliness configuration to achieve the highest level of facial security & ensure physical requirements for punching.

World's best facial algorithm engine providing standard universal facial templates.

RGB+IR camera facilitates quick and accurate matching.

Compact and elegant design form factor.

Specification

Device Type Smart Facial Recognition & Fingerprint Terminal
Screen Size 5 inches,Full viewing angle, 170°IPS LCD screen, Resolution 720*1280
Camera Dual Lens camera RGB+IR, Focal Length: 4.3mm±5%, with 2 million pixels
Operating System Android 9 or higher
Processor AMLOGIC, Quad Core ARM Cortex A-55, 1.60 GHZ + ARM G31 Mali for 3D Graphics
Memory 8GB ROM
Lighting Environment White LED
Sensor Infrared
Card ISO 14443 Type A/B Mifare
Communication Ethernet, Bluetooth, WIFI
Distance Within 0.6 meter to 1 meter for best use case
AI Controller Built - in
User capacity 1:N Matching Optional (3 Variants)
Variant1 : 1K Users
Variant2 : 3K Users
Variant3 : 6K Users
User capacity 1:1 Matching 25000 Users
Transactions 150000 Logs
Fingerprint Sensor 500 DPI Capacitive Fingerprint Sensor
Liveliness Detection
Software Visitors Application, Canteen Application
Attendance Application, Access Control Application
Peripheral Ports Power: DC Jack
LAN: Rj45
Micro USB
Wiegand
RS-485
Relay NO,NC.COM
Audio Digital Audio Speaker, Microphone
Environment Operating Temperature:- 20 degree to +60 degree
Humidity:- 0 to 90 percentage Non-Condensing
Mobile Device Management Mantra Standard MDM Software (Optional)
Mounting Brackets Wall Mount Bracket
Turnstile Mount Bracket
2 meter pole bracket for barrier
IP Compliant IP65 (Dual Weatherproof Enclosure)
